GARDA 2® F
Glass Railings on Profile : the most complete offer
A Glass Railing is a safety guardrail that ensures the safety of its users and prevents them from falling through it.
The installation of a glass railing on a profile, also called a fixing rail, allows the glass panels to be fixed by holding them exclusively from below. It ensures optimal protection.
In addition to its safety function, a glass railing on profile also offers maximum transparency by eliminating any visual obstacle. It then makes it possible to have a better lighting.
Righetti is not a reselling company, they are positioning themselves as a dedicated contact to determine the best solution to manufacture your glass railing.
We are able to carry out particular projects ( 0,6 kN ), your demand concerning public-access buildings (1 .0 kN ), train stations, stadiums, swimming pools, and all your projects that need products with a high resistance (3kN ).
Discover a complete offer and the most performant profiles of the market:
2/ TRANSLEVEL® by Onlevel
1/ SABCO® EVO by Sadev.
2/ Glass railing on profile GARDA 2® / TRANSLEVEL® by ONLEVEL
Righetti is offering you GARDA 2®, a complete glass-railing system with TRANSLEVEL® Profile from ONLEVEL and EVA laminated glass approved by the TECHNICAL APPROVAL n° 2.1-15-1674V4 from the CSTB (Scientific and Technical Centre for Construction).
A technical approval guarantees the overall compliance from the glass and the associated fixing system.
This system can be used with a 8.8/2 laminated glass and is suitable for private as well as public applications.
THE FLEXFIT ADJUSTMENT TOOL
Flex-fit from Onlevel is an innovative solution for adjusting glass panels. It is the solution for perfect and secure alignment of glass balustrades. This system allows you to adjust the position of a glass plate up to 40mm precisely and saves up to 30% in assembly time.
Moreover, this system allows an assembly only on the balcony side and not on the empty side. This solution makes installation easier and offers the best safety conditions.
FOUR MOUNTING SYSTEMS
-
Floor mounting
-
Side floor mounting GARDA 2® F Remote
-

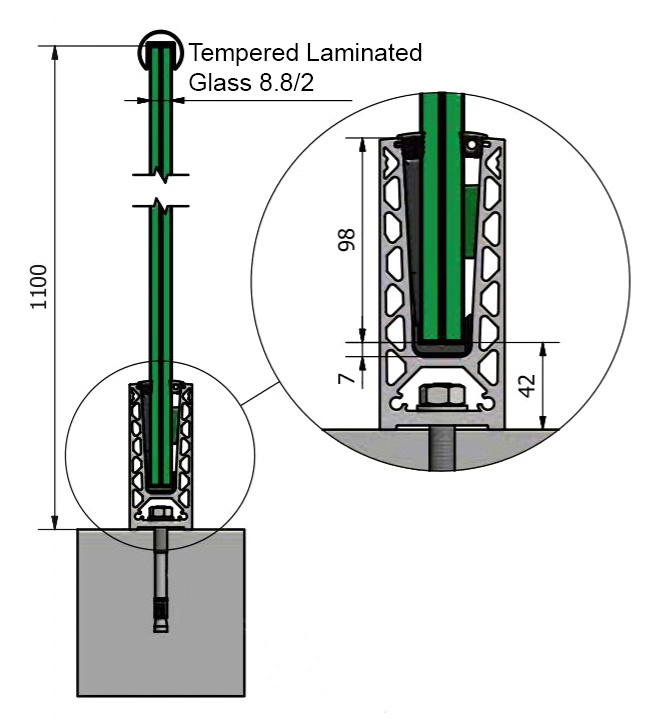

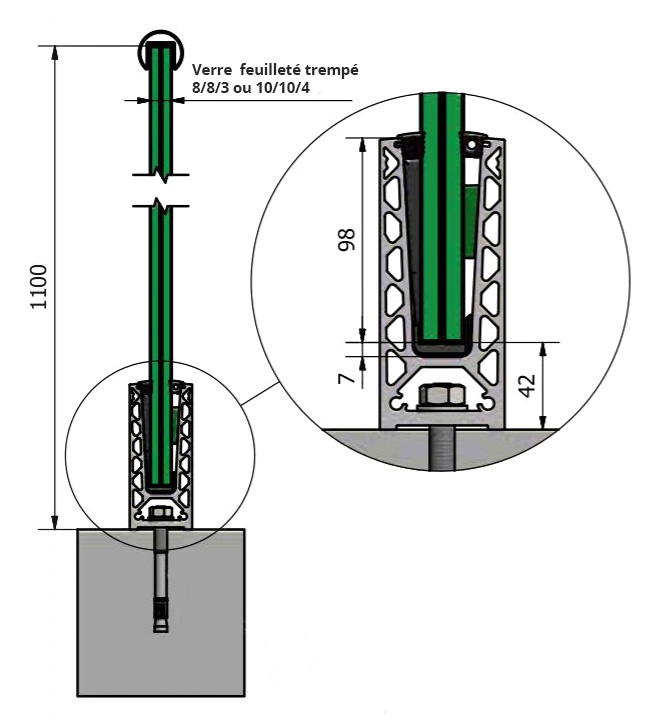

GARDA 2® F
GARDA 2® F is a glass railing system which is suitable for an installation on slab (also called French installation). Laminated glasses are fixed on the floor with an aluminium profile in a continuous manner without a post, with or without a handrail.
This solution is validated by the TECHNICAL APPROVAL n° 2.1-15-1674V4 from the CSTB and can be used with 8/8/2 tempered laminated glass.
Private use (0,60 kN) and public use (establishments open to the public) (1,00 kN).
-

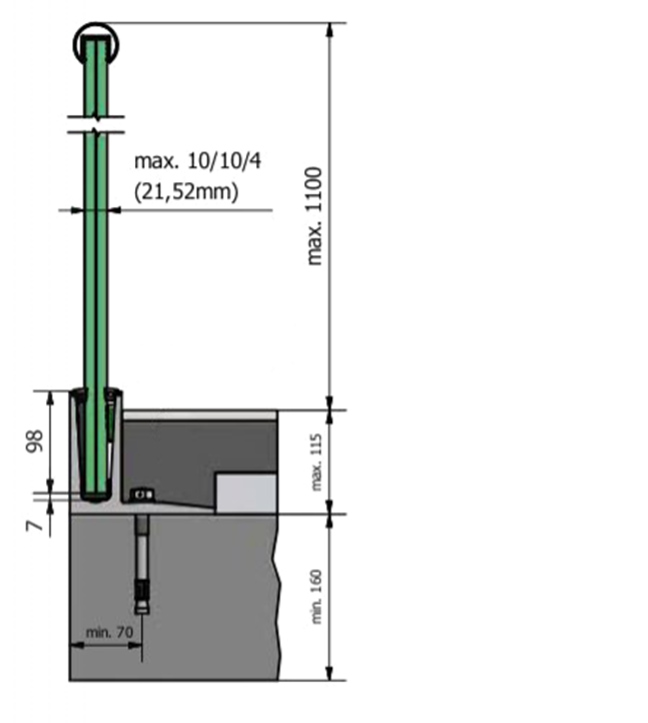

GARDA 2® F Remote
GARDA 2® F Remote is a glass railing system which is suitable for an installation next to the slab (also called French installation). Laminated glasses are fixed on the floor with an aluminium profile in a continuous manner without a post, with or without a handrail.
This solution is validated by the TECHNICAL APPROVAL n° 2.1-15-1674V4 from the CSTB and can be used with 8.8/4 or 10.10/4 tempered laminated glass.
Private use (0,60 kN) and public use (establishments open to the public) (1,00 kN).
-
Floor mounting GARDA 2® A
-
Remote floor mounting GARDA 2® AY
-
Side mounting GARDA 2® AY+
-
GARDA 2® A
GARDA 2® A is a glass railing system which is suitable for an installation at the slab nose with an aluminium profile in a continuous manner without a post, with or without a handrail. (also called English installation).
This solution is validated by the TECHNICAL APPROVAL n° 2.1-15-1674V4 from the CSTB and can be used with 8.8/2 or 10.10/3 tempered laminated glass.
Private use (0,60 kN), public use (establishments open to the public) (1,00 kN)
-
GARDA 2® AY
The GARDA 2® AY guardrail offers a remote slab nosing mounting with an aluminium profile in a continuous manner without a post, with or without a handrail. (also called English installation).
This solution is validated by the TECHNICAL APPROVAL n° 2.1-15-1674V4 from the CSTB and can be used with 10.10/4 tempered laminated glass.
Private use (0,60 kN), public use (establishments open to the public) (1,00 kN)
-
GARDA 2® AY+
Side mounting
The 2 AY+ glass railing can be installed from the side.
This glass railing profile includes the EVA tempered laminated glass and its fixing system on profile TRANSLEVEL® by ONLEVEL.
This glass railing profile is suitable for indoor installation with underfloor heating, as well as for outdoor installations on terraces with pedestal-mounted slabs. It can also be attached to metal structures
This profile is suitable for tempered laminated glass 8.8/2 or 10.10/3.
It can only be used for a private use, without technical approval.
Les cookies de YouTube sont désactivés, vous ne pouvez pas lire de vidéos.
1/ Glass railing on profile GARDA 1® / SABCO EVO® by SADEV
Righetti offers you GARDA 1® : a complete glass-railing system with EVA laminated glass and *SABCO® EVO® from SADEV profiles.
This solution is approved by a TECHNICAL APPROVAL from the CSTB (Scientific and Technical Centre for Construction). A technical approval guarantees the overall compliance from the glass and the associated fixing system.
This system is suitable for private or public applications.
MOUTING SYSTEM
GARDA 1® offers an installation system on the balcony side and on the exterior side (approved by the technical approval).
Possibility of mounting the glass railing only on one side, faster clamping and easier access to the building site.
Adjustment of the glass alignment (of + / – 15 mm) allowing a perfect alignment of glass.
FOUR MOUTING SYSTEMS
-
Floor mounting GARDA 1® F
-
Remote floor mounting GARDA 1® FE
-
Slab mounting GARDA 1® F Eco
-

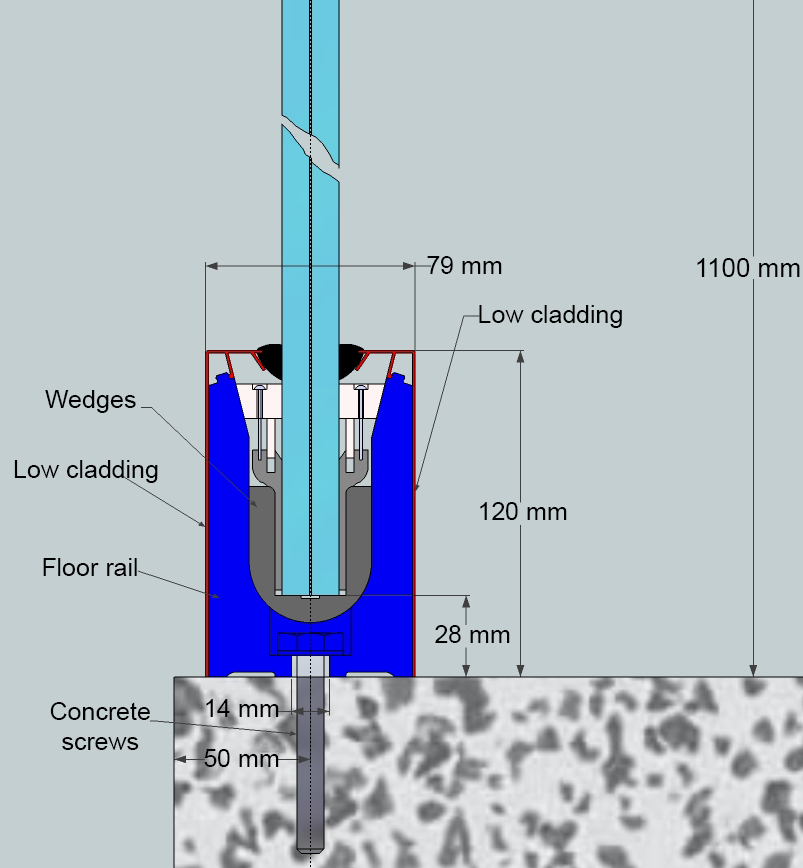

GARDA 1® F
GARDA® F is a Glass Railing System placed on slab (floor mounting, also called French installation).
This solution includes profiles and EVA or PVB laminated glasses and is approved by a technical approval from the CSTB.
Private use (0,60 kN), public use (establishments open to the public) (1,00 kN) and stadiums (1,7 kN).
-

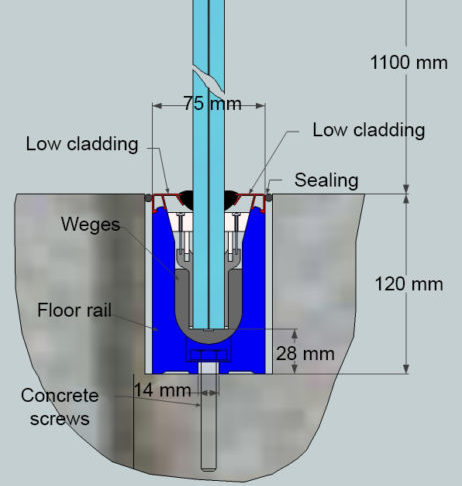

GARDA 1® FE
GARDA® FE is a Glass Railing System built in the ground, with profiles and EVA laminates glasses.
This solution is approved by the a technical approval from the CSTB.
Private use (0,60 kN) and public use (establishments open to the public) (1,00 kN)
-
GARDA 1® F Eco
Slab mounting
GARDA 1 F Eco is a glass railing system that can be mounted on slab (also called French installation). Glasses are held by a continuous aluminium profile without posts, with or without a handrail.
This profile is suitable for an outdoor use on terraces with pedestal-supported slabs. It can also be installed on metal structures.
We offer this solution with profiles and the EVA tempered laminated glasses, for private use only and validated by a TECHNICAL APPROVAL from the CSTB.
For private use (0.60 kN)
-
Side mounting GARDA 1® A
-
Remote side mounting GARDA 1® AY
-
GARDA 1® A
GARDA® A is a Glass Railing System fixed at the slab nose (also called English installation).
This solution includes profiles and EVA laminated glasses. It
is approved by the a technical approval from the CSTB.
Private use (0,60 kN) and public use (establishments open to the public) (1,00 kN)
-
GARDA 1® AY
GARDA® AY is a Glass Railing System with a remote slab nosing mounting (also called English installation).
This solution includes profiles and EVA or PVB laminated glasses and is approved by the a technical approval from the CSTB.
Private use (0,60 kN), public use (establishments open to the public) (1,00 kN) and stadiums (1,7 kN)
Les cookies de YouTube sont désactivés, vous ne pouvez pas lire de vidéos.
Advantages of our Glass Railings
- A complete turnkey solution with profile and glazing, certified by a technical approval
- Thanks to its EVA laminated glass process, our glazing have an outstanding moisture resistance. Glass Railings that are built outside or in a humid environment do not present any risk of delamination over time, unlike PVB laminated glass.
- Our technical approval is also available for our digital printing glasses
- Adjustment of the glazing’s perpendiculatiry while installing it (+/- 15mm) allowing a perfect alignment of your glass
- Fixing every 200 mm or 400 mm with concrete screws
- High rail stiffness for an optimal support
*Sabco is a SB INGENIERIE (SADEV) trademark
